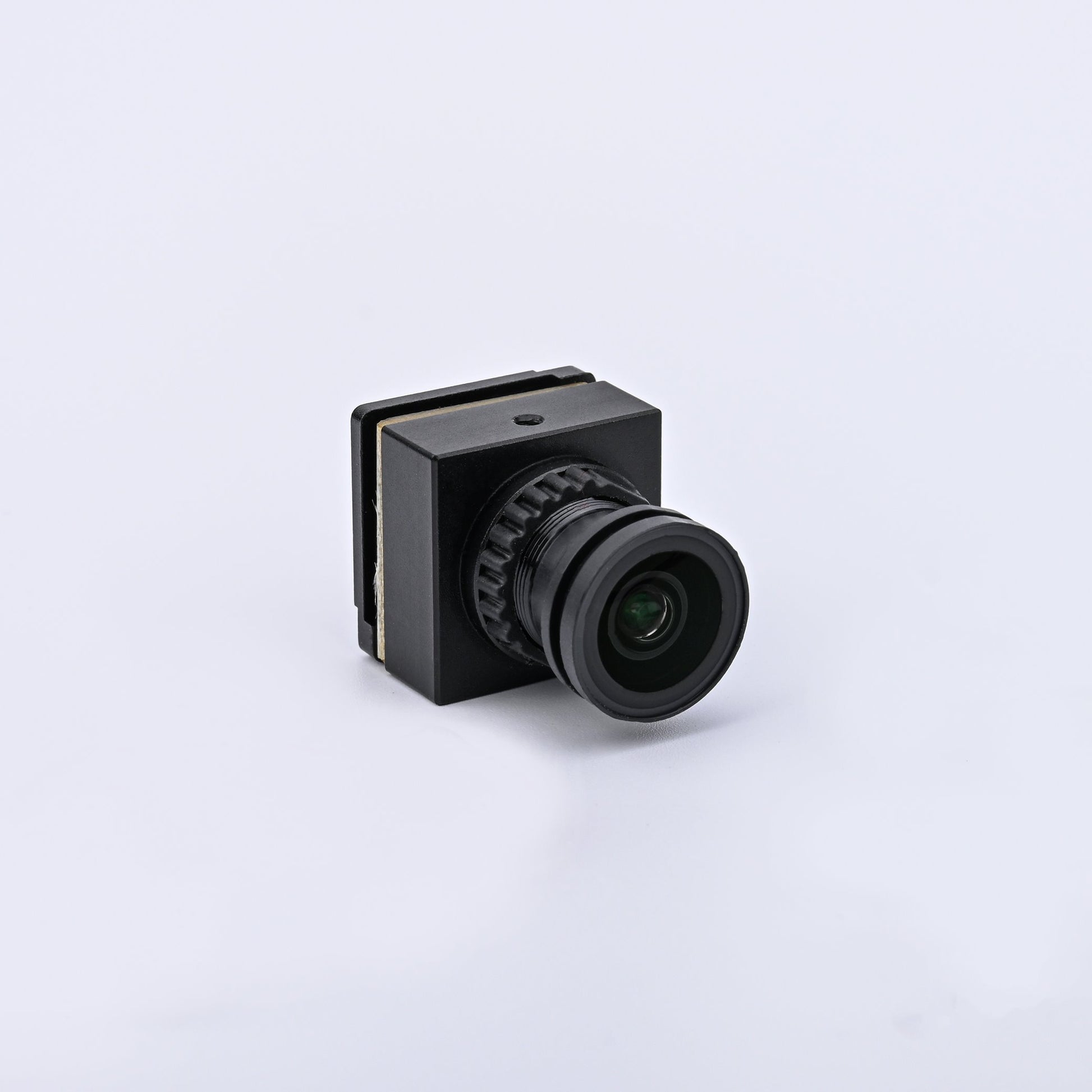

Day/Night Camera 1800TVL

Owl Night Camera Parameters

**CVBS Coaxial HD Module**

- **Sensor Type**: 1/2.7"

- **System**: PAL/NTSC

- **Resolution**: 1928H × 1088V

- **Pixel Size**: 3.0μm × 3.0μm

- **Dynamic Range**: 72dB

- **Signal-to-Noise Ratio**: 40dB

- **Min. Illumination**: 0.00001 Lux

- **Shutter**: AUTO

- **Day/Night Mode**: External Control (default) / Auto / Color / B&W

- **Night Vision**: IR Supported

- **Sync**: Internal

- **Frame Rate**: 1080P @ 60fps

- **Video Output**: CVBS

**Lens Parameters**

- **Focal Length**: 3.3mm

- **Aperture**: 1.1

- **Horizontal FOV**: 101°

- **Structure**: 2G5P

- **Distortion**: < -54%

- **Relative Illumination**: 43.5%

**Functions/Controls**

- **Exposure**: Brightness / Exposure Mode / Gain / Digital Wide Dynamic

- **White Balance**: Auto Tracking / Manual

- **Menu Control**: UTC Menu Control

- **Image Settings**: Contrast / Sharpness / Saturation / Digital Noise Reduction / Mirror

- **Languages**: Chinese / English

- **Factory Reset**: Available

**General Specifications**

- **Operating Temp**: -20°C to 60°C

- **Humidity**: < 90% RH

- **Power Consumption**: 5V @ 140mA

- **Dimensions**: 19.6 × 19.6 mm
