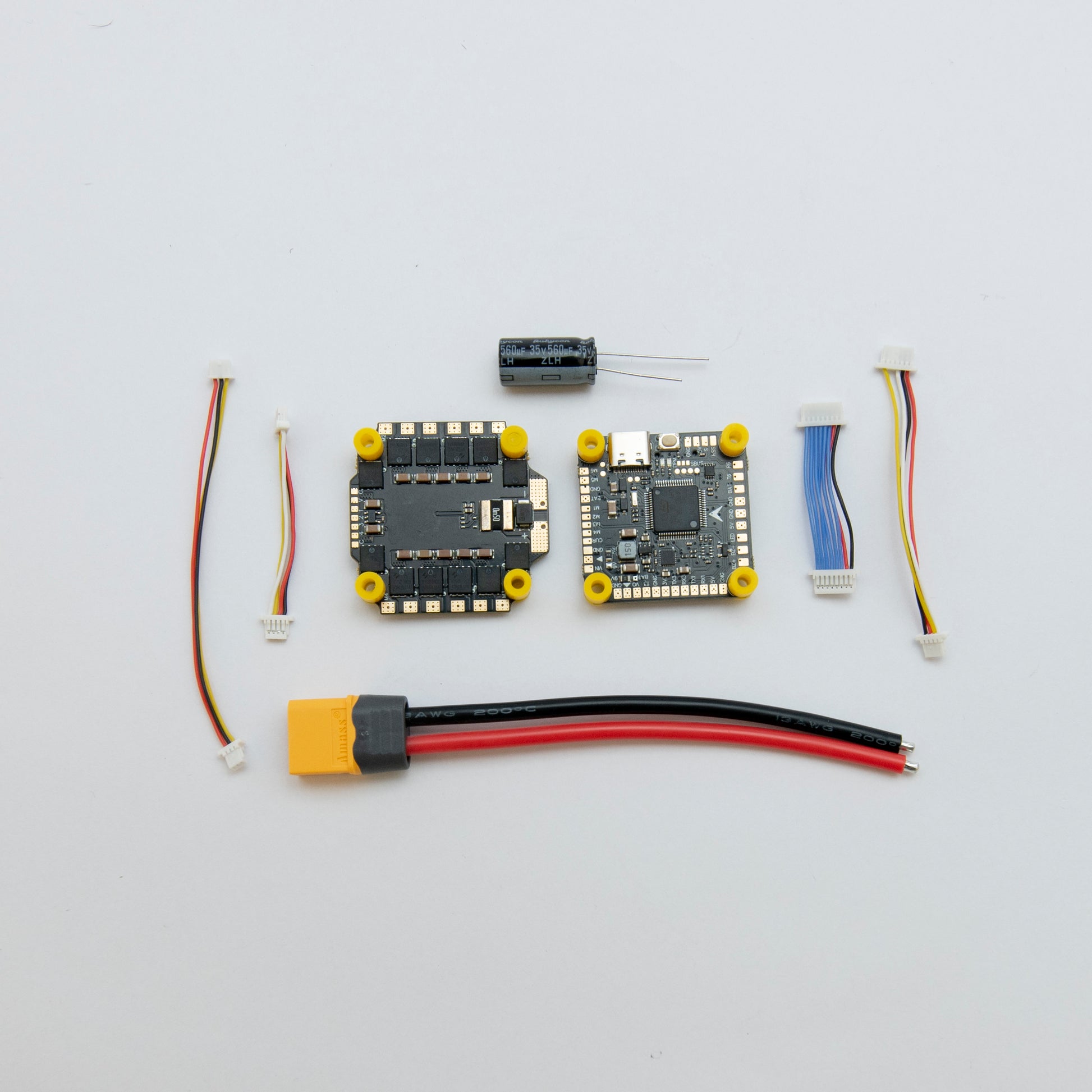

Flight Control Stack F405 + 65A

Dejite Flight control（FC): NX F405：                                                                               Size：37×37mm

Install hole distance ：30.5×30.5mm

9V：9V Output interface for regulated power supply, max. 2A current

5V：5V Output interface for regulated power supply, max. 3A current

4.5V：Receiver power interface

(USB only, voltage under power

supply)

CR：Current monitoring port

M1：Camera adjustment pin

(selected by flight control

firmware version)

VI：Camera Input Connector

VO：VTX Output Connector

LED：RGB Light Connector

B-：Connect the buzzer negative

and the positive electrode to B +

RC:Receiver SmartPort Connector

Rssi：Rssi Signal Input

- 96Khz 55A and 65A Bl-heli 32bit 3-6S ESC / STM32F722 FC

- BMI 270 Gyro

- Blackbox Flash 16MB

- UART ports: 6

- BEC :5V @2A and 9V@2A

- ESC SENSOR Supported

- HD/Analog Supported

LED-BZ Supported

- GPS Supported

- X8 PWM Supported

• Plug and Play Support
